Text Expressions

Text expressions allow dynamic string interpolation by embedding BizzStream expressions within text. You can include BizzStream expressions by enclosing them in double curly braces ({{ }}).

For example, the following text expression:

price: ${{ 2 + 2 }}

resolves to:

price: $4

Where Are Text Expressions Used?

Text expressions are commonly used in the following contexts:

Location	Purpose	Description
Document Definitions	Label	Dynamically sets the label for a field or line field.
	Reference Label	Dynamically sets the value of a reference field.
	Email Rule	Creates a comma-separated list of recipient email addresses.
	Show Notification Rule	Sets the title and/or content of a notification.
	Send Push Notification	Sets the content of a push notification.
	REST Call Rule	Sets the request header for a REST API call.
	Go to URL Rule	Provides a dynamic URL to be opened.
	Confirmation Dialog Rule	Specifies the message in a confirmation dialog.
Menu	Menu Block Label	Sets the label for a menu block.
Templates	Edit HTML	Embeds field values within an HTML template.
	File Name	Can set a file name dynamically.
Layout	Label values	Dynamically sets the value inside the label field.
	BML values	Sets values dynamically inside BML components.

Examples

Here are some examples of how text expressions are used. This does not show exactly for each use case the approach but, the general information to start working with the text expressions.

Menu

To create a menu with a text expression the following steps can be followed:

• Create a new treeview block.
• Add a label. The value for name will be automatically generated.
• Create an item within this treeview and configure a label and name again.

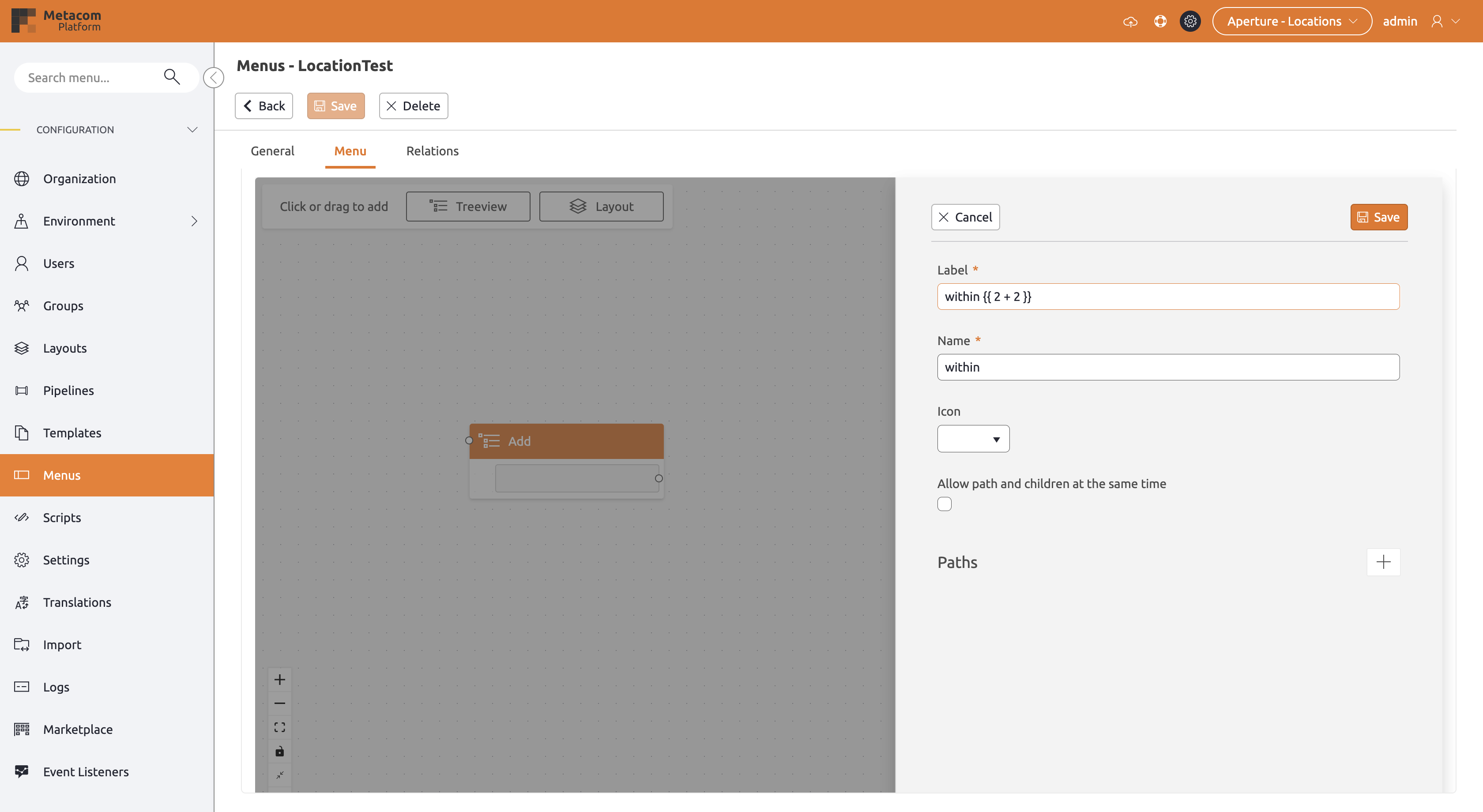

• Now change the label to contain a text expression as you wish.
• For this example, we will use the example from before: 2 + 2.

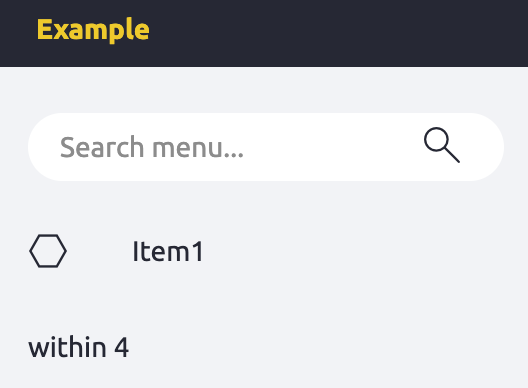

After saving, we see it already in the menu editor. Now when going to the main view, we can see the navigation with the "within 4", instead of the text expression itself.

Using Pointers

Another more useful method is getting prices or values dynamically using pointers.

In this example we will get the name of an item using the value that the user has selected.

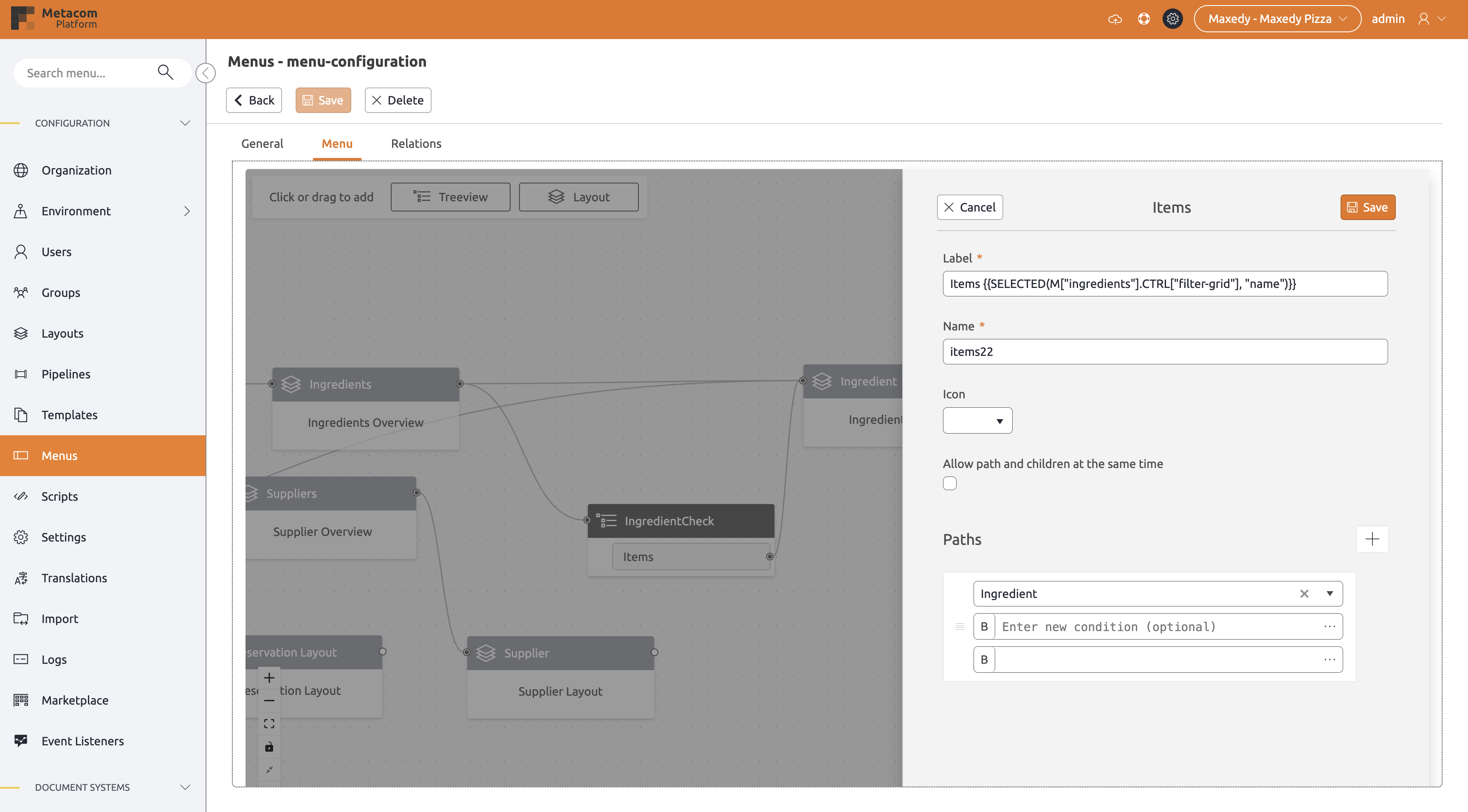

The pointer that has been added selects the name of the currently selected field. The pointer checks first for the menu ingredients, then checks inside this menu for the grid filter-grid, and then lastly the name. This is all nested in a SELECTED command.

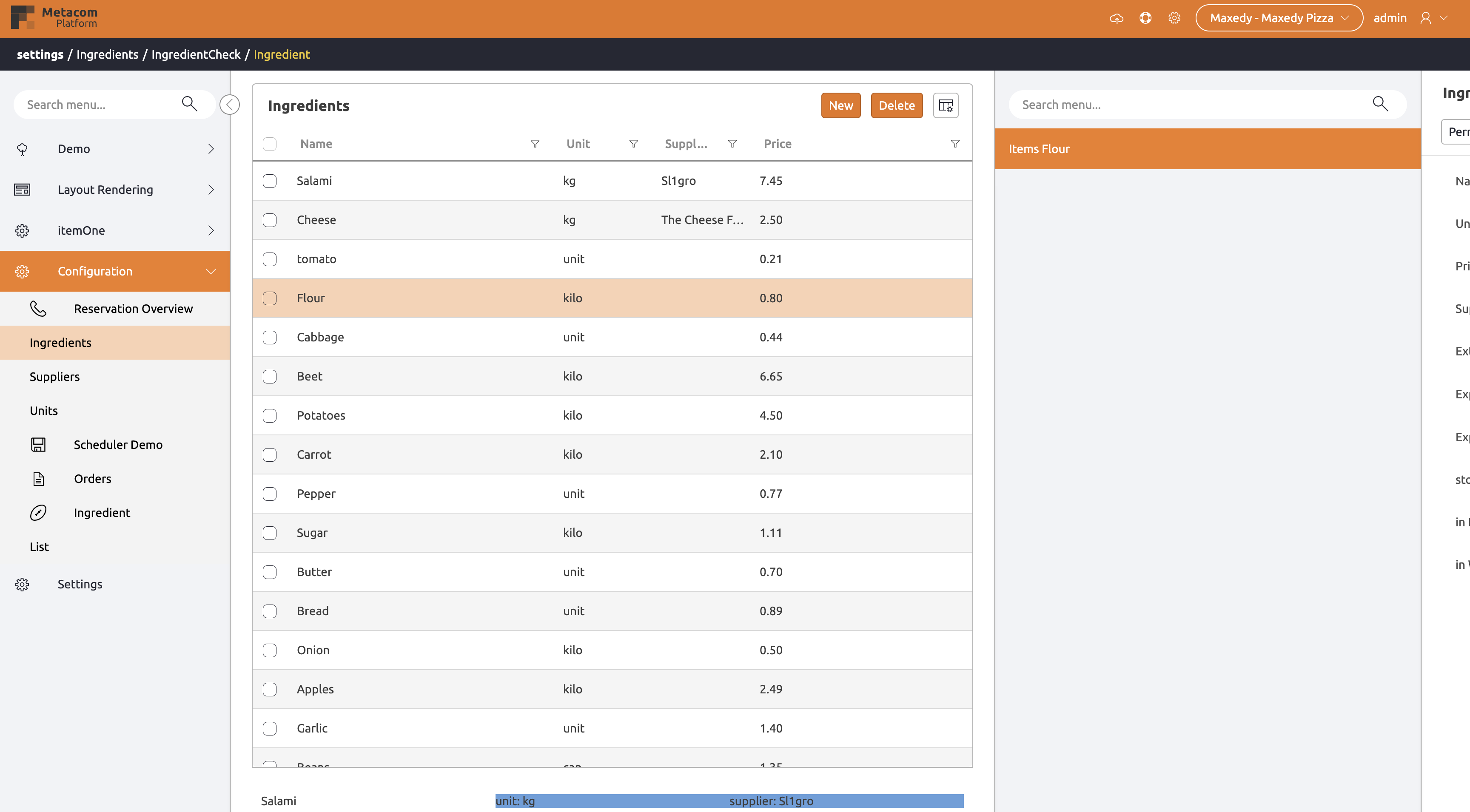

It will result in a treeview like this:

BML text expressions

The usage of text expressions in BML can be used for setting text dynamically but, also it can be used to change the styling dynamically.

Setting text

A simple example using default alignment and basic font styling with a BML text element.

<bml borderColor="#000000" borderWidth="1">
    <text fontFamily="Arial" fontSize="14" textColor="#000000">
        Hello, BML World! {{F['name']}}.
    </text>
</bml>

Output:

Hello, BML World! Pizza margarita.

Changing BML style

Change the value of a progressbar using the value selected by the user.

<bml>
  <progress value="{{F['price']}}"/>
</bml>

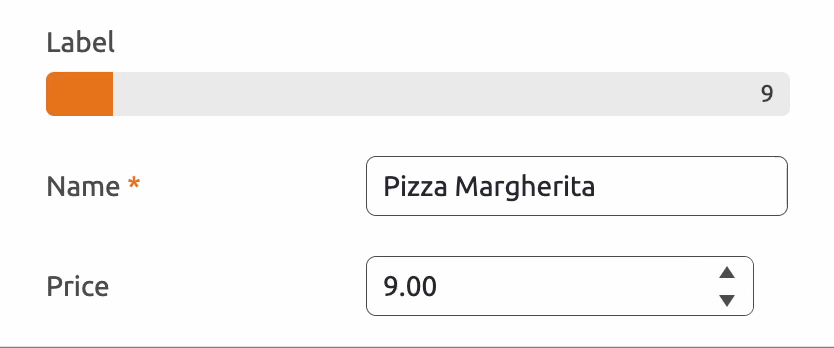

Output:

Reference fields

When making a reference field, the key part is to set the correct value. Most common value is setting the name of the reference field.

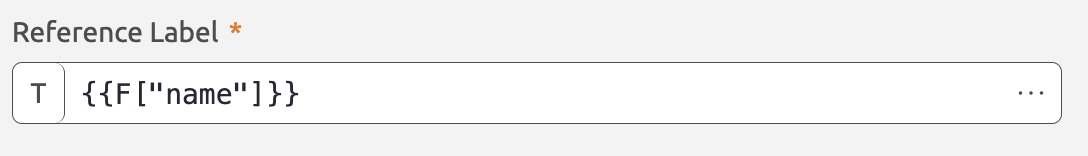

In this example we will get the names and display this using the reference field:

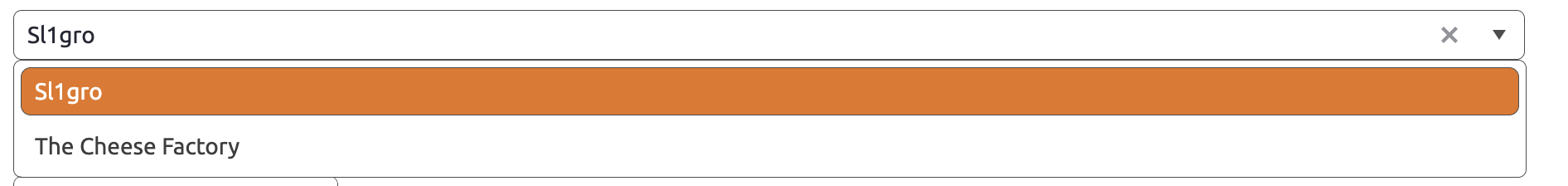

Output:
